MGL Avionics Blaze 3.1/8" colour instruments
Vega Single New generation smart singles.
The Stratomaster Blaze range consists of fifteen 3.1/8" color display based instruments (some still to be released).
Using a high resolution color graphics display, these instruments provide excellent daylight readability, even in direct sunlight.
In addition they all have built in backlighting making them easy to read at night time.
They include a rotary control plus 2 independent keys for easy menu navigation and to access specific instrument features.
All engine monitoring Vega instruments have the ability to interface to a MGL Avionics RDAC unit.
Electrical
  • 8-30VDC
  • operates on standard 12V & 24V supplies
  • reverse, overvoltage and transient protected
  • 15/30mA backlight off/on
  • supply should be fused (250mA)
Physical
  • standard 3.125 inch cutout
  • front or rear panel mount
  • 66mm deep, allow 120mm for connector and cable routing
  • display 57x30mm
  • 100g weight
  • dimensional drawing
Alarm output
  • open collector output to drive alarm lamp/LED
  • max 50V/500mA
  • common up alarm outputs to drive a single warning lamp
  • individual alarm indicator on instrument, display item in alarm flashes
Environmental
  • -20C to +80C
  • sunlight readable LCD display
  • backlit for low light viewing
Warranty
  • 12 months
  • field upgradeable firmware

  • AHRS1

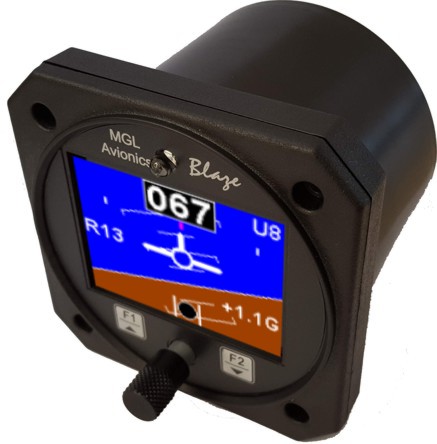

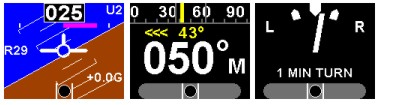

    AHRS2/AHRS4 artificial horizon and magnetic compass display

    The AHRS2 is a 3.1/8 sunlight readable color display instrument providing a display for an artificial horizon reference system (AHRS), an advanced digital compass, or both depending on which sensor packages is connected.
    The AHRS2 can be setup to display the following:
    • Compass with optional slip indicator (requires SP6 sensor package)
    • Horizon with optional slip, turn indicator & G-Force (requires SP7 sensor package)
    • Turn and bank indicator (requires SP7 sensor package)
    • Combined compass and horizon display with bank indicator, optional slip indicator & G-Force (requires SP6 & SP7 sensor package)
    The AHRS4 is identical to the AHRS2 but with built in attitude sensors.
    The AHRS4 does not require the SP7 sensor package to display the attitude, but requires the SP6 compass sensor package to display heading.
    Accessories
    SP6 magnetometer
    SP7 AHRS

    Manual
    AHRS2
    $305.00
    AHRS4
    $605.00

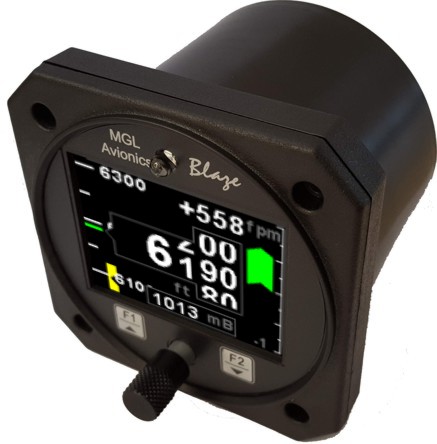

    ALT7

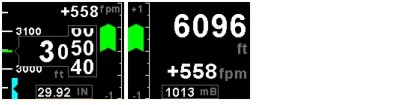

    ALT7 Gilham code encoding altimeter/VSI
    • High accuracy 24 bit digital altitude sensor: -1000 ft to 35000 ft.
    • Encoded RS232 serial data compatible with Garmin, Magellan, Northstar, Trimble, Microair transponders
    • Gilham code parallel output for older transponders
    • User selectable feet or meters, QNH in hPa or inHg.
    • VSI indicator in ft/min or m/s
    • User settable altitude bug and encoder test function.
    Accessories
    Manual
    Silicon tubing
    ALT7
    $420.00 (inc)

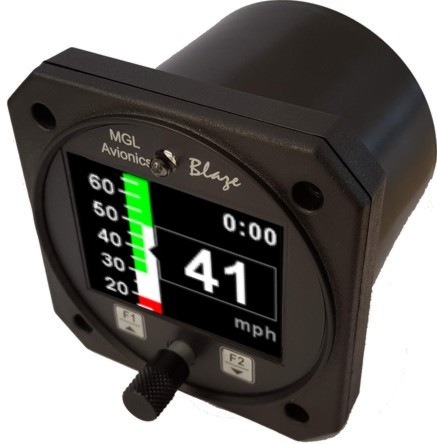

    ASI5
    ASI5 airspeed indicator
    • Airspeed from 15-215 knots with good sensitivity and linearity at low air speeds
    • Optional high speed version 17-280 knots special order
    • Flight timer since takeoff
    • User settable units- mph/kmh/kts
    • Analog tape with programmable ranges for Vs0, Vs1, Vfe, Vno and Vne
    • Programmable Vs and Vne airspeed alarm output
    • Records maximum airspeed reached in permanent memory
    Accessories
    Manual
    Silicon tubing
    ASI5
    $390.00 (inc)

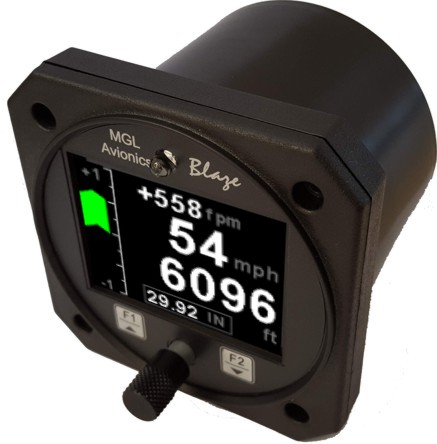

    ASV2
    ASV2 ALT/ASI/VSI
    • High accuracy 24 bit digital altitude sensor: -1000 ft to 35000 ft.
    • Encoded RS232 serial data compatible with Garmin, Magellan, Northstar, Trimble, Microair transponders
    • User selectable feet or meters, QNH in hPa or inHg.
    • VSI indicator in ft/min or m/s
    • User settable altitude bug and encoder test function.
    • Airspeed from 15-215 knots with good sensitivity and linearity at low air speeds
    • Optional high speed version 17-280 knots special order
    • Flight timer since takeoff
    • User settable units- mph/kmh/kts
    • Programmable Vs and Vne airspeed alarm output
    • Records maximum airspeed reached in permanent memory
    Accessories
    Manual
    Silicon tubing
    ASV2
    $440.00 (inc)

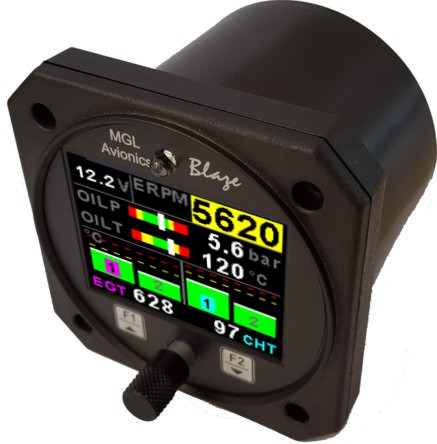

    EMS2
    EMS2 engine monitor
    3.1/8 universal engine monitor color display instrument. The EMS2 contains all the necessary functionality to replace several engine monitoring instruments. The EMS2 can also be interfaced via the CAN bus to an optional external RDAC unit (Remote Data Acquisition Computer). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment.
    • 4-12 J or K type thermocouple channels (EGT/CHT)/li>
    • 1-2 RPM channels
    • 4 analog channels (temperature/pressure/current)
    • Manifold pressure (RDAC-XG MAP required)
    • Hobbs, maintenance, flight timers with 50 flight logs
    • Volts, current
    Accessories
    Level, pressure, temp senders

    Manual
    EMS2
    $380.00 (inc)

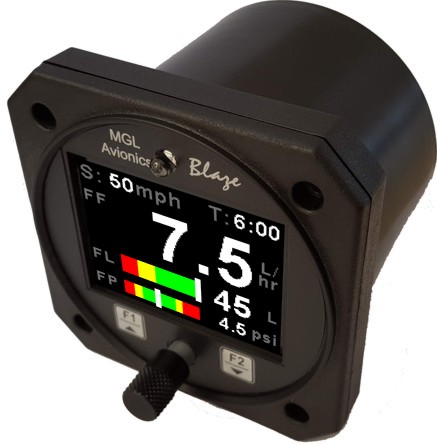

    FF5

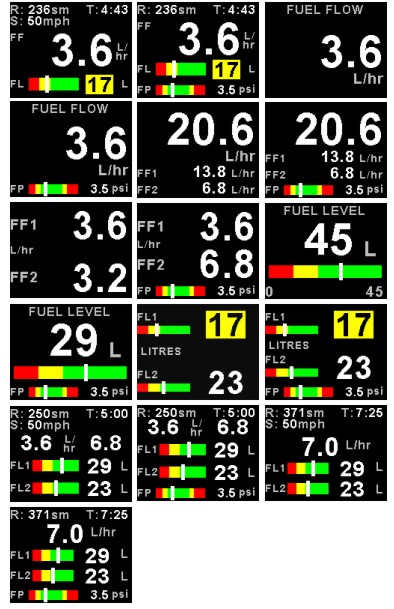

    FF5 fuel computer
    • Multiple display configurations based on single/dual flow senders, single/dual level senders and a fuel pressure sender./li>
    • Standard automotive fuel level senders can be used, even with odd shaped tanks due to a comprehensive, multi-point calibration system
    • Full functionality is available with a fuel flow and level sender or only with a fuel flow sender using calculated fuel levels based on fuel usage.
    • Differential fuel flow calculations are also supported for fuel return systems.
    • Fuel injector systems also supported
    • The FF4 can use the actual ground speed from a RS232 NMEA enabled GPS receiver to determine fuel range
    Accessories
    Fuel level senders
    Fuel flow sender

    Manual
    FF5
    $380.00 (inc)

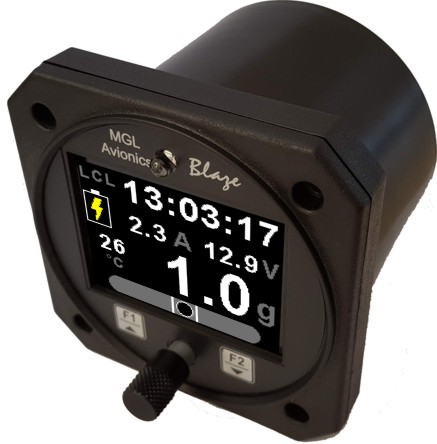

    INFO2
    INFO2 Information Display
    • G-meter
      • +/-16g range
      • Records the maximum positive and negative g-forces in permanent memory with a password protected reset
      • 2 independent cycle counters count times a preset force has been exceeded
      • Compensates for panel tilt
    • Clock
      • UTC and Local Time display
      • Time is maintained by a user replacable internal lithium battery
    • Slip indicator
      • The slip indicator can be disabled in the menu system
    • Battery Voltage/Current/Charge display
      • Suitable for both 12V and 24V aircraft with voltages up to 30V DC
      • Requires the MGL Avionics magnetic field sensor to measure current
      • Programmable low/high voltage alarm to automatically detect bad batteries and alternator failures
      • Maximum and minimum voltage reached recorded in permanent memory
    • OAT display
      • Degrees C or F
      • Programmable low/high OAT alarm
      • Maximum and minimum OAT recorded in permanent memory
    • Flight Timer & Flight log
      • Flight log stores the start time and duration of the last 50 flights
      • Flight timer can either be started using a front push button or from a remote input
    • Stopwatch, Countdown Timer & Alarm
      • Stopwatch and timers can be operated simultaneously to a programmable alarm
      • Useful for sport flying competitions and fuel management
    Accessories
    Magnetic current sender

    Manual
    INFO2
    $320.00 (inc)

    MAP4

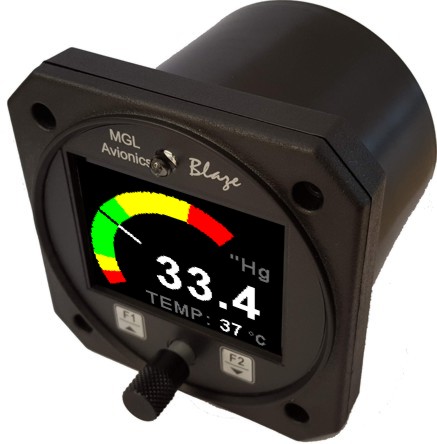

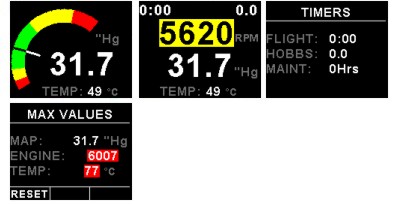

    MAP4 Manifold pressure, RPM and teperature indicator
    • Manifold pressure in hPA/mBar or inHg
    • Scalable analog manifold pressure bar graph
    • Temperature can be displayed in degrees C or F
    • Pasword protected Hobbs meter
    • Programmable maintenance timer for scheduled routine engine maintenance
    • Engine running and flight timer
    • Magneto check function
    • Records maximum MAP, RPM and temperature in permanent memory
    • Programmable low/high alarms for MAP, RPM and temperature
    Accessories
    Manual
    Silicon tubing
    MAP4
    $380.00 (inc)

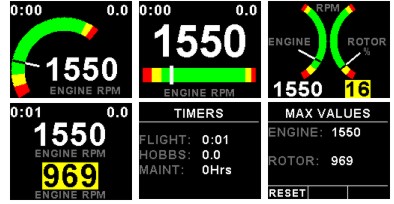

    RPM2

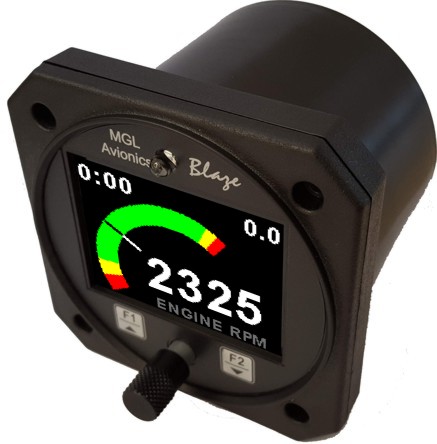

    RPM2 Universal Engine/Rotor RPM indicator
    • Single or dual RPM or %RPM
    • Maximum values display screen
    • Magneto check function to easily diagnose magneto problems
    • Hobbs meter (password protected), engine running timer, flight timer, programmable maintenance timer
    Accessories
    RPM senders

    Manual
    RPM2
    $330.00 (inc)

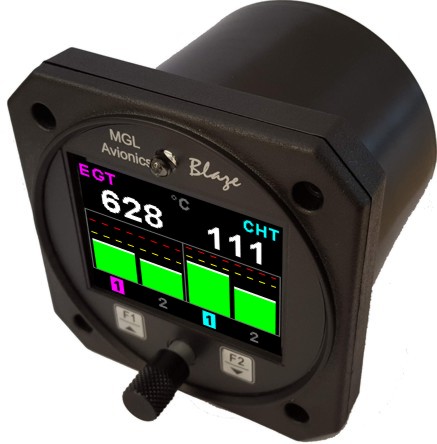

    TC55

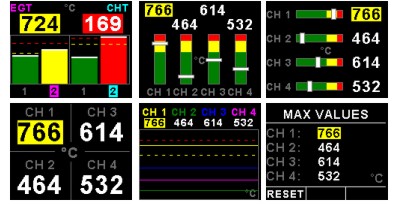

    TC5 4-Channel Thermocouple (EGT/CHT) indicator
    • Can be configured for 5 different temperature display screens
    • Supports J, K and E type thermocouple probes
    • The display can be configured to group EGTs and CHTs to common settings or each thermocouple channel can be independently displayed with individual programmable high alarm and probe type
    • High accuracy due to its built in thermocouple linearization curves and cold junction compensation
    • Temperatures in degrees C or F from -100C to 1200C (-148F to 2192F)
    • Trend graph and maximum values display
    • Engine leaning facility which allows the pilot to optimize the fuel mixture according to peak EGT temperatures
    • Cruise mode facility to provide instant identification of changing EGT/CHT trends
    Accessories
    EGT senders
    CHT senders

    Manual
    TC5
    $318.00 (inc)

    TC6

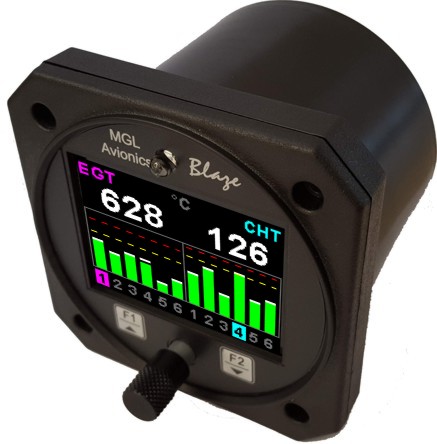

    TC6 12-Channel Thermocouple (EGT/CHT) indicator
    • Can be configured for 5 different temperature display screens
    • Supports J, K and E type thermocouple probes
    • High accuracy due to its built in thermocouple linearization curves and cold junction compensation
    • Temperatures in degrees C or F from -100C to 1200C (-148F to 2192F)
    • Trend graph and maximum values display
    • Engine leaning facility which allows the pilot to optimize the fuel mixture according to peak EGT temperatures
    • Cruise mode facility to provide instant identification of changing EGT/CHT trends
    Accessories
    EGT senders
    CHT senders

    Manual
    TC6
    $380.00 (inc)

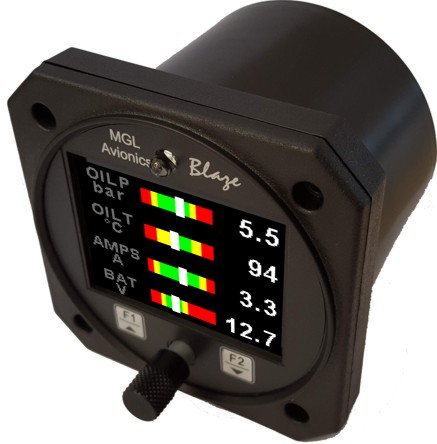

    P4
    TP4 4 Channel Universal Analog Input (Pressure/Temperature/Current/Volts) Indicator
    • Four universal analog inputs that can each be used for pressure / temperature / current or volts
    • High accuracy: Built in linearization curves for common senders
    • All analog channels have a programmable low and high alarm
    • These make a tidy litle EMS for a Rotax 4-stroke showing OIL.T, OIL.P, CHT.L and CHT.R
    • User defined curve for custom senders
    • Records the minimum and maximum values reached for each channel in permanent memory
    • Pressure
      • Pressure can be displayed in psi or bar
      • Standard automotive resistive senders (e.g. VDO 2, 5 and 10Bar)
      • Rotax 4-20mA senders
      • Voltage output pressure senders (e.g. UMA)
    • Temperature
      • Temperatures can be displayed in C or F
      • Standard automotive resistive senders (e.g. VDO, Westach)
      • MGL precision temperature sender
    Accessories

    Manual
    Silicon tubing
    TP4
    $310.00 (inc)
